Check fit, interface standard, socket support, and system compatibility before installation.

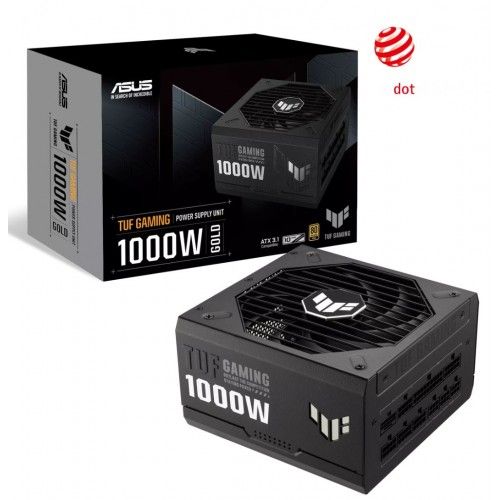

M odel TUF Gaming 1000W Gold Intel Form Factor ATX12V PFC Type Active PFC ATX Standard ATX 3.1 Dimensions 150 x 150 x 86 mm Efficiency 80Plus Gold MTBF >120,000 hrs @ 40°C Protection Features OPP/OVP/UVP/SCP/OCP/OTP Hazardous Materials ROHS AC Input Range 100-240Vac DC Output Voltage +3.3V +5V +12V -12V +5Vsb Maximum Load 25A25A83.3A 0.8A 3A Combined Load 130W 130W 1000W 9.6W 15W Total Output 1000W Cable Connectors MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (both PSU & component side) PCI-E 8-pin x 4 SATA x 5 PERIPHERAL x 4 Package Contents Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (650mm) PCI-E Gen 5.1 16-pin Cable x 1 (675mm) PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm) PCI-E 1-to-1 Cable x 2 (675mm) SATA 1-to-2 Cable x 1 (400+120mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-4 Cable x 1 (400+150+150+150mm) TUF Gaming Cable Tie x 3 User Manual x 1 Weight 2.48kg (single PSU) 0dB Technology Supported. The fan shuts off entirely when the PSU is under certain load 0dB Fan Button No. The product operates in 0dB mode by default. The fan will only spin up when the system reaches a certain load.

Cyberdyne Systems honors the manufacturer's warranty coverage. Most products carry manufacturer coverage in the 1 to 3 year range, many SSDs carry 5 year coverage, and some power supplies can extend up to 10 years depending on the manufacturer and model.

If the manufacturer covers the product, Cyberdyne Systems will help process the claim without adding extra warranty-handling charges.
